HXGS Solid Insulated Electrical Switchgear
Published in2018-08-17
5699 ViewsDetailed description

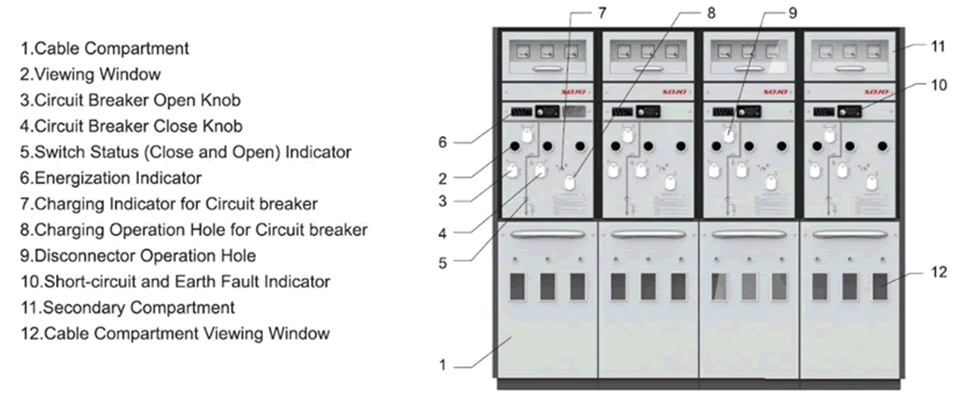

HXGS?Solid Insulated Electrical Switchgear, 12KV, 24KV,
HXGS?Solid Insulated Electrical Switchgear?is developed on based of its superior patented technologies such as solid insulation, solid sealed pole, fully-insulated modular busbar, etc, solid insulated ring network cabinet fully meet the ring network and radiation distribution network of various wiring programs.
The intelligent terminal equipment connected to the solid insulated switch unit can monitor and control the real-time situation remotely and ensure intelligent, reliability and flexibility of the distribution network system.
??No SF6?gas inside, avoiding pressure tank designing.
??All live parts are sealed or embedded in the epoxy resin and silicon rubber, fully insulated and wholly enclosed structure, safety protection level: IP67.
??All operating mechanism sealed inside a box, truly maintenance-free.
??Enhanced phase separation design, independent phase insulation to avoid the fault between phases.
??Standard modular design to facilitate unit extension, modification and replacement.
??Switch working position of each phase could be observed independently.

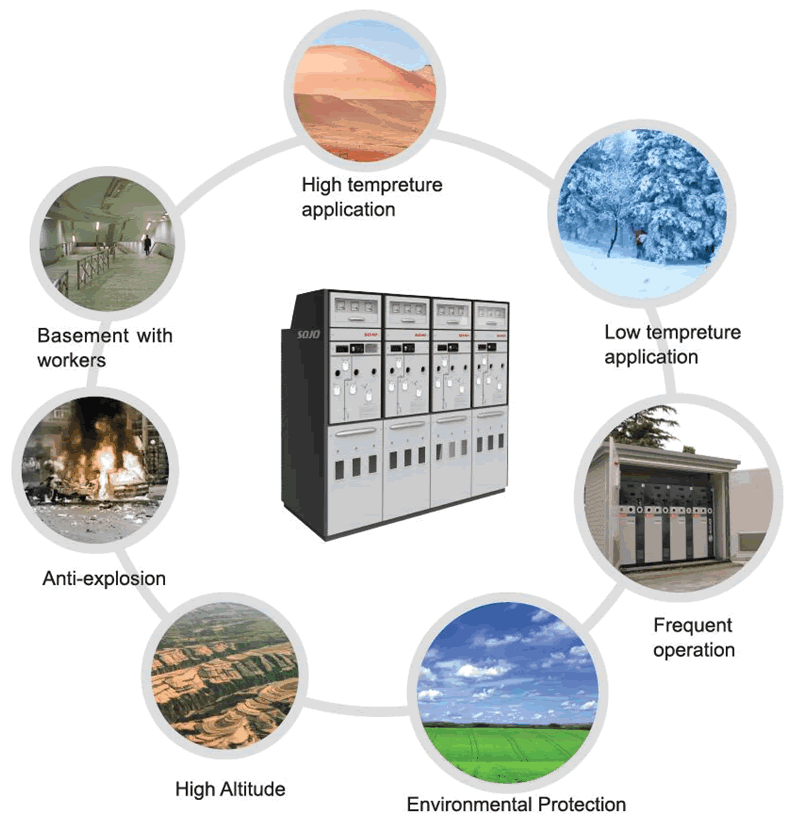

??Safe, smart, environment-friendly, flexible assembly enabled, good performance to apply in special environments.
??Multiple mechanical interlock to achieve 'five-protection' function.
??Complete indoor & outdoor application solution.
?Ambient temperature:
?Maximum temperature + 70℃
?Minimum temperature - 50℃
?Humidity Level:
?Maximum comparative average humidity
?Daily average ≤ 95%; ? Monthly average ≤ 90%
?Seismic capacity?:Level 8
?Altitude:≤5500 M
?Water submersion test:24 hour water resistance at a pressure of 0.3 bar?and voltage of 12 KV.
?Degree of protection:Sealed electrified body ? ? ? ? IP67
?Fuse tube ?? ? ? ? ? ? ? ? ? ? IP67
?Metal enclosure ? ? ? ? ? ? ? ?IP4X
?Busbar:Internal earthed busbar ? ? ?????? 150 mm2Cu
?Thickness of insulation bushing ?? 12.0 mm
?The diameter of sealed and insulated busbar ?28.0 mm
|
|
|
Module C |
Module?F |
Module?V |
|
|
|
|
|
Load Switch |
Load Switch + Fuse |
Vacuum Circuit Breaker |
Disconnector |
Earthing?Switch |
|
Rated Voltage |
kV |
12 |
12 |
12 |
12 |
12 |
|
Arc Quenching |
|
Vacuum |
Vacuum |
Vacuum |
|
|
|
Rated Current |
A |
630 |
125 |
630/1250 |
630/1250 |
630/1250 |
|
Rated Frequency |
Hz |
50 |
50 |
50 |
50 |
50 |
|
Main Circuit Resistance |
μΩ |
≤120 |
300?Note1 |
≤120 |
|
|
|
Power Frequency Withstand?Voltage Between Phases, Phase to earth/open contacts |
kV |
42/48 |
42/48 |
42/48 |
42/48 |
42/48 |
|
Lightning Impulse Withstand?Voltage?Between Phases, Phase to earth/open contacts |
kV |
75/85 |
75/85 |
75/85 |
75/85 |
75/85 |
|
Rated Short-circuit Breaking Current |
kA |
|
31.5?Note2 |
20/25/31.5 |
|
|
|
Rated Short-circuit Breaking Times |
times |
|
|
30 |
|
|
|
Rated Short-circuit Making?Current |
kA |
50 |
|
50/63 |
|
|
|
Rated Short-circuit Making Times |
times |
5 |
|
5 |
|
|
|
Rated Short-time Withstand Current |
kA/4s |
20 |
|
20/25 |
20/25 |
20/25 |
|
Rated Peak Withstand Current |
kA |
50 |
|
50/63 |
50/63 |
50/63Out |
|
Internal Arc Test(AFLR) |
KA/s |
20KA/0.5s (Include busbar room, switch room, cable tank) |
||||
|
Partial Discharge |
pC |
≤5 |
≤5 |
≤5 |
|
|
|
IP Rating |
|
IP67 |
IP67 |
IP67 |
|
|
|
Mechanical Endurance |
times |
10000 |
10000 |
10000 |
3000 |
3000 |

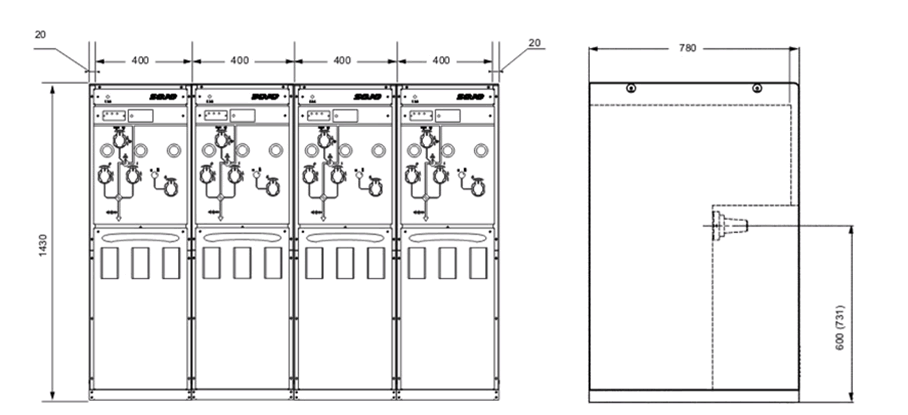

---- Dimensions
