JN22-40.5 Middle voltage earth switch
Product Description JN22-40.5/31.5 Indoor HV Earthing Switch is used for 3 phase rated voltage 40.5kV, AC 50Hz power system , high voltage switchgear with KYN61-405, high voltage electrical equipment maintenance as the use of ground fault protection.
Published in2018-08-20
2815 ViewsDetailed description
Product Description
JN22-40.5/31.5 Indoor HV Earthing Switch is used for 3 phase rated voltage 40.5kV, AC 50Hz power system , high voltage switchgear with KYN61-405, high voltage electrical equipment maintenance as the use of ground fault protection. The switch conforms to the national standard GB1985-2004 " AC high voltage disconnectors and earthing switches" and IEC62271-102.
- Altitude: ≤1000m
- Relative humidity: monthly average ≤90%; daily average: ≤95%
- Earthquake intensity: ≤8 degree
Environment condition
- Ambient temperature: -25oC~+40oC- Altitude: ≤1000m
- Relative humidity: monthly average ≤90%; daily average: ≤95%
- Earthquake intensity: ≤8 degree
Technical Data
|
Rated?voltage?(kV)
|
35
|
|
|
Max.?voltage?(kV)
|
40.5
|
|
|
Rated?short-time?withstand?current?(thermal?stability)?(kA)
|
31.5
|
|
|
|
4
|
|
|
Rated?short-circuit?making?current?(kA)
|
80
|
|
|
Rated?peak?withstand?current?(dynamic?stability)?(kA)
|
80
|
|
|
Inter-pole?center?distance?(mm)
|
350,?400
|
|
|
Rated?insulation?level
|
1min.PF?withstand?voltage?(kV)
|
95
|
|
Lightning?impulse?withstand?voltage?(kV)
|
185
|
|

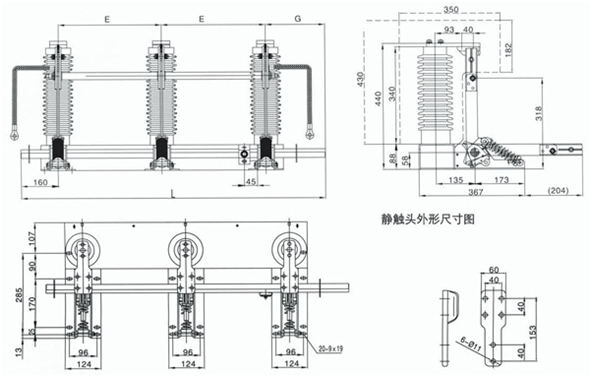

Outline Dimension
